Pumps for the Screed Insulation Flushing System

Accessory – Pumps

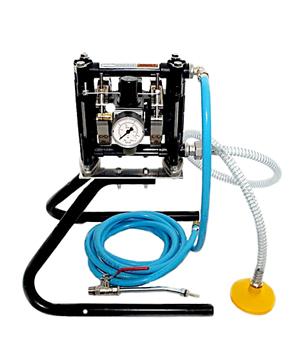

EDD Screed Insulation Flushing System HIGHPUMP

Lightweight and handy double diaphragm pump with self-priming in a practical, robust carrying frame suitable for building sites. The pressure is infinitely variable from 1-7 bar. The pump stops upon reaching the set injection pressure.

The pneumatic injection pump is ideal for inserting the JATI EDD Screed Insulation Flushing System in screed insulation whenever work needs to be performed with light pressure, e.g. when it is inserted via a packer or the edge joint. For operation you need a compressor with an air output of approx. 150 l/min.

Special features

  • Flexible suction system
  • Handy and compact
  • Suitable cavity filling
  • Infinitely adjustable pressure
  • Easy to use and clean

Basic equipment

  • Pressure regulator with pressure gauge
  • 5 m material hose
  • Injection set with packer connection

Technical data

  • Delivery rate max. 24 l/min
  • Operating pressure 7 bar
  • Weight 6 kg
  • Air consumption 150 l/min

EDD Screed Insulation Flushing System Delivery Pump

The Screed Insulation Flushing System Delivery Pump is ideal for applying large quantities of ready-to-use JATI EDD Screed Insulation Flushing System quickly and efficiently. Suitable hoses and adapters with a valve enable it to be inserted directly into core holes.

Self-priming centrifugal pump with an electronic pump control, steel membrane pressure container and pressure gauge. The pump control switches on and off automatically depending on the flow rate. The pump switches off automatically if it runs dry and prevents damage from overheating.

Technical data

  • Pressure connection: 1” internal thread
  • Particle size: 1 mm
  • Voltage: 230 V / 1 Ph / 50 Hz
  • Speed: 2900 rpm
  • Insulation class: F
  • Protection rating: IP 44
  • Mains fuse: min. 16 A
  • Suction lift: max 8 m
  • Suction line: min. 3/4″
  • Pressure line: min. 1/2”
  • Primary pressure: max. 2 bar
  • Delivery pressure: 6 bar
  • Delivery rate: up to 6000 l/h
  • Mains cable: 2 m
  • Cable type: H07RN-F
  • Noise level running under load: 70 dbA
